Variants

Variants are node subtrees inside your Constellation, which while not always visible depending on your view settings, still interact with your Constellation just like any other node. All nodes, except the root node, can be varianted. Varianted nodes can easily be spotted by looking at their ID, which will contain a : followed by a string of text. The text part must be, when encoded to UTF8, at least 1 byte and at most 100 bytes and can’t contain the : character. For example, the ID 12345678:foo has an ID value of 12345678 and an ID variant of foo, thus the node that has this ID will be in the foo variant. Nodes with IDs that does not contain an ID variant are said to be in the Default variant. The ID 12345678 would have the Default ID variant and would be the Default variant of the 12345678:foo ID. Varianted nodes can only have descendant nodes that are of the same variant. This means that, for example, the parent node 87654321:foo can’t have any descendant nodes (e.g. a child node, or a child node’s child node) with anything but the same variant (which is foo).

Varianted nodes, as previously mentioned, exist in their own subtrees but still interact with the rest of the Constellation and even other variants. Variants are one way to represent single tenant solutions in your system. For example, imagine you have an API that is deployed for all customers except one, called Company Inc.. Company Inc. does not want to consume your general API and instead wants their own API. You oblige and deploy a single tenant API just for them. Instead of creating a new node in your Constellation, you can instead variant the node representing the general API already deployed. Now, whenever your API is unhealthy (node’s status result becomes Failure), you can see if it’s the general API or the single tenant API that’s unhealthy. However, because varianted nodes still affect the entire Constellation (because all nodes, even varianted ones are descendants of the root node) your system will still be unhealthy, as it should.

When viewing your Constellation, you can generally only see nodes belonging to one variant at a time. So for example, if you have the variants abc and xyz in your Constellation, you can view your Constellation from three different variants: Default, abc, and xyz. When viewing anything but the Default variant, any nodes that does not have a varianted node in the current variant and do not share the same parent, will be seen. This means that if node 12345678 and node 12345678:foo share the same parent, they can never be viewed at the same time. However, if they were to not share a parent, then both can be viewed in the foo variant. But only the Default node (12345678) will still be visible in the Default variant view.

^[^:]{1,100}$ Length (UTF8): 0 Min: 1 Max: 100

Examples

Following are examples of Constellations with varianted nodes. Nodes with dotted outlines and opacity are nodes that are currently not seen in the selected variant (denoted by the label underneath each figure).

Different variants

The nodes 12345678 and 12345678:xyz have the same ID value (12345678) but belong to different variants (Default and xyz). In the left figure, we’re viewing the Default variant. On the right, we’re viewing the xyz variant. Because the nodes share the same ID value and share the same parent, they can’t be seen at the same time.

Nodes with the same ID value but different variants

Different nodes

Unlike the previous example, both nodes can be seen at the same time in the xyz variant because, while they do share the same parent, they don’t share the same ID value. However, in the Default variant view, only the node(s) of the Default variant will be seen.

Different ID values and different variants

Subtree

Varianted nodes can of course also have descendants, as long as the descendants share the same ID variant (in this example, xyz). Also note how, just like in the first example, only one of the subtrees can be seen at a time because the parents share the same ID value (12345678).

Subtrees with the same ID value but different variants

Multiple subtrees

Here we can see that when viewing the xyz variant we can see all nodes because none of the varianted nodes share the same parents as their Default varianted node counterparts.

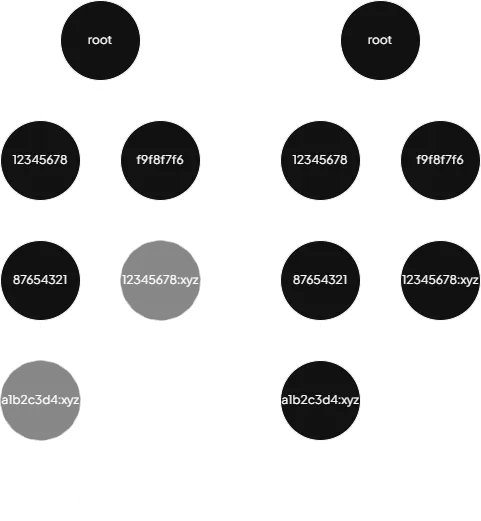

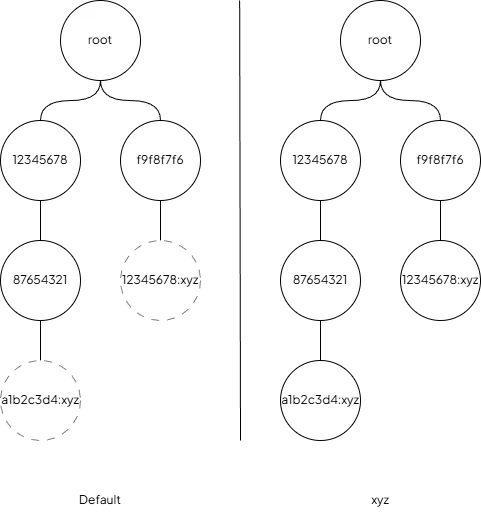

Multiple subtrees with the same ID variants

Multiple variants

Multiple variants in the same Constellation is also supported and will work just the same as with one variant.

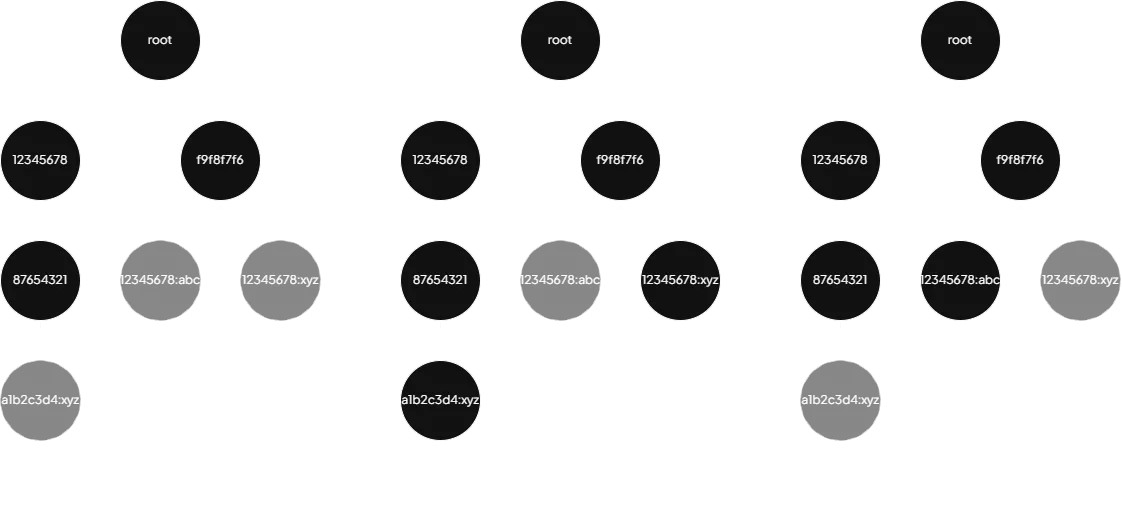

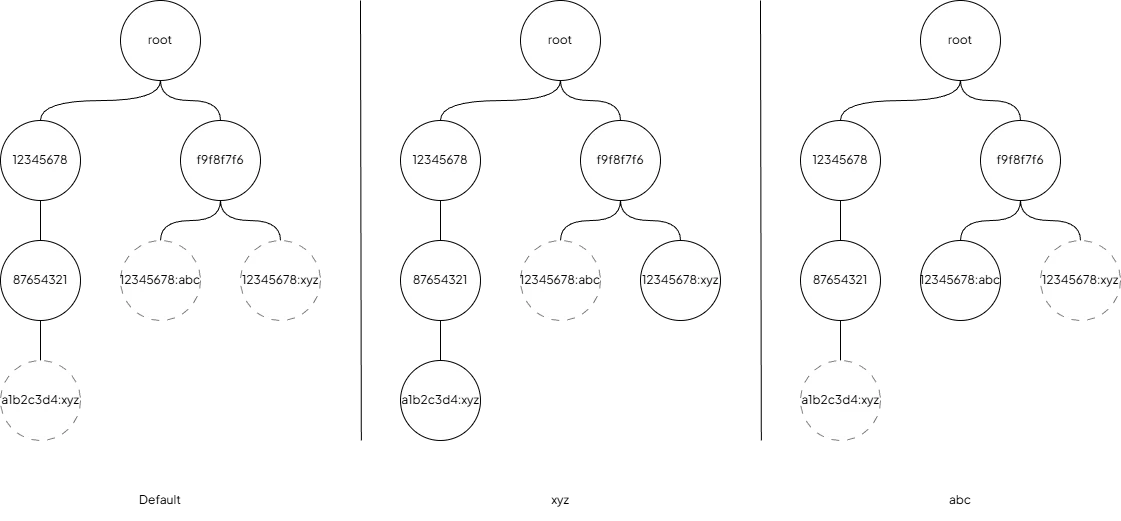

Multiple subtrees with multiple variants

Illegal varianting

Here are some examples of illegal varianting:

Varianted node 12345678:xyz can’t have a child node with the Default variant.
Varianted node 12345678:xyz can’t have a child node with a different variant (abc).
Special case if a varianted node (12345678:xyz) exists in the same parent as a node with the same ID value but the Default variant. In that case, all other nodes in said variant must be descendants of the node in the same parent. This is because if this was allowed then the 87654321:xyz would never be seen (neither in the Default variant nor in the xyz variant as the 12345678 node would be hidden).

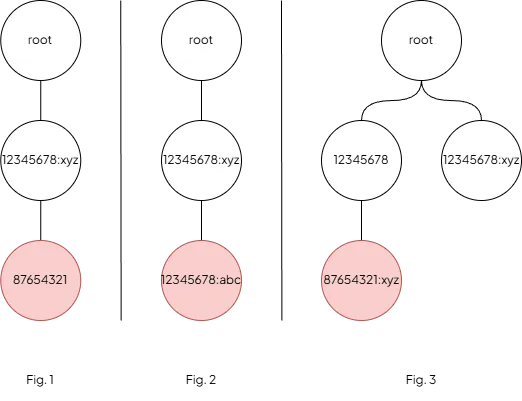

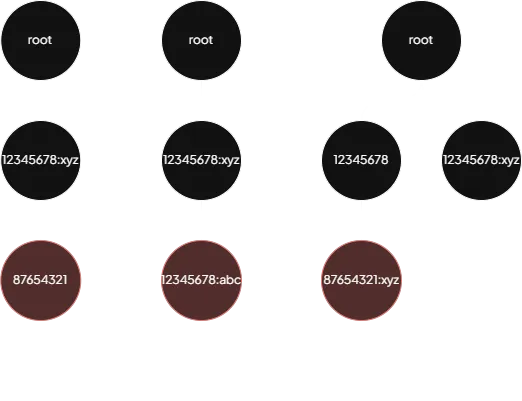

Illegal varianting (offending nodes colored red)

Bumping a varianted node

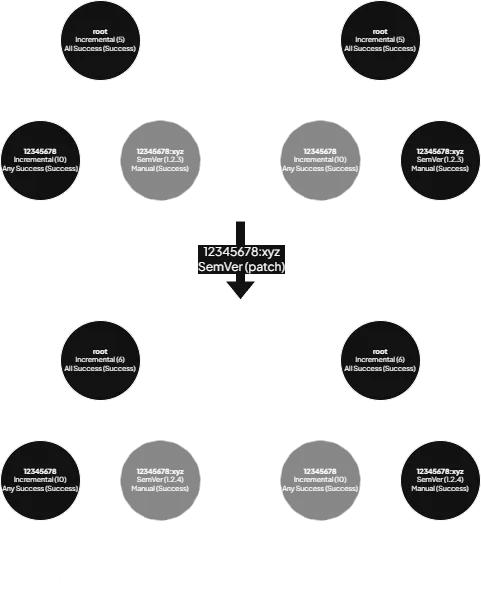

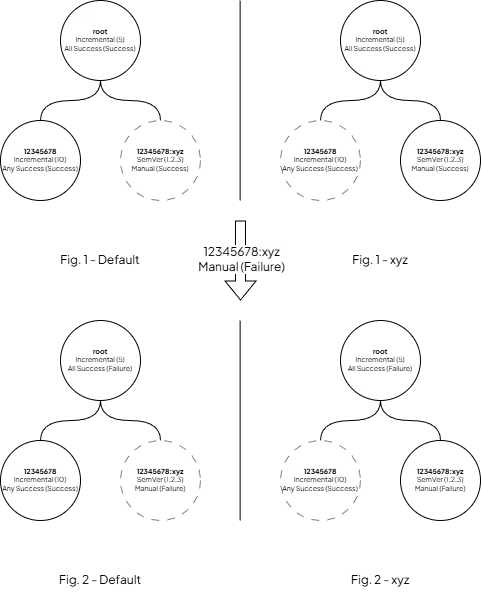

As mentioned earlier, even if varianted nodes (or some nodes in the Default variant) can’t be seen at times it does not mean that they don’t affect the Constellation as a whole. Following is an example of bumping a varianted node’s version and how it impacts the root node. Read more about versions and bumping here.
